Submersible Pumps

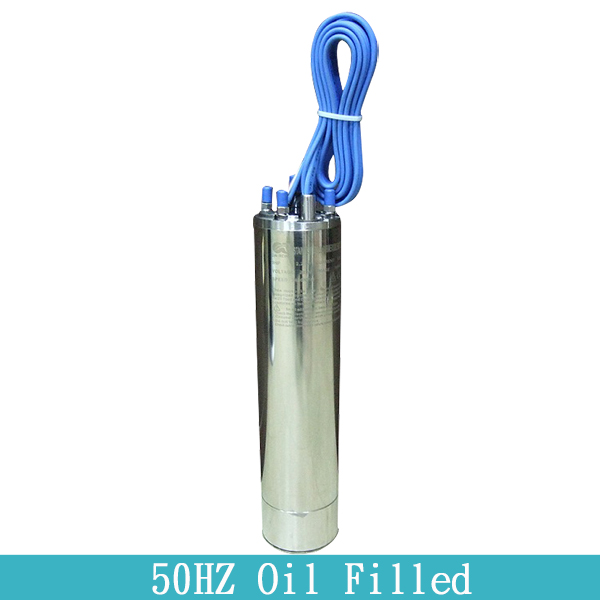

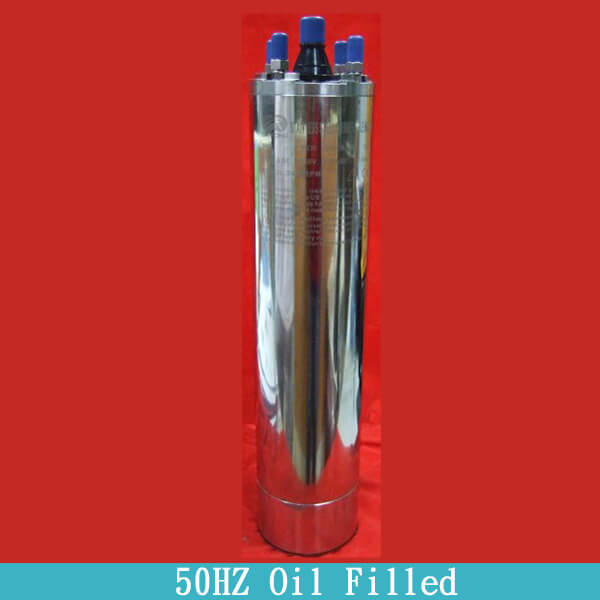

50HZ Single & Three Phase Oil Filled Submersible Motors

4"MENA flange
60HZ /50HZ Volts±10%
Degree of protection:IP 68
Rated ambient temperature:35℃
Cooling flow:min.0.3 m/d
Max starts:40/h
Max operating depth:300m
Food oil lubricated
Diaphragm of pressures compensation
Axial thrust supported form angular ball bearing
Axial thrust:
from 0.5hp to 1.5hp-2000N;
from 2hp to 3ph-3000N
from 4hp to 5.5hp-4000N;
from 7.5hp to 10ph-5000N
CE、ISO 9001:2015

Oil Filled Submersible Motor Features

Single & Three Phase Submersible Motors (50Hz)2850 rpm

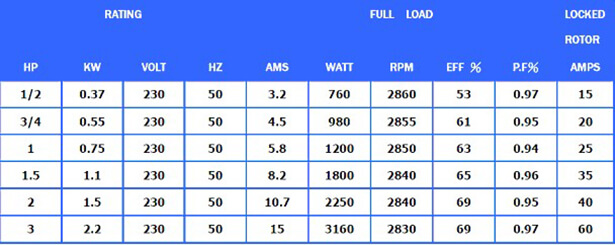

Single Phase Motor Specification

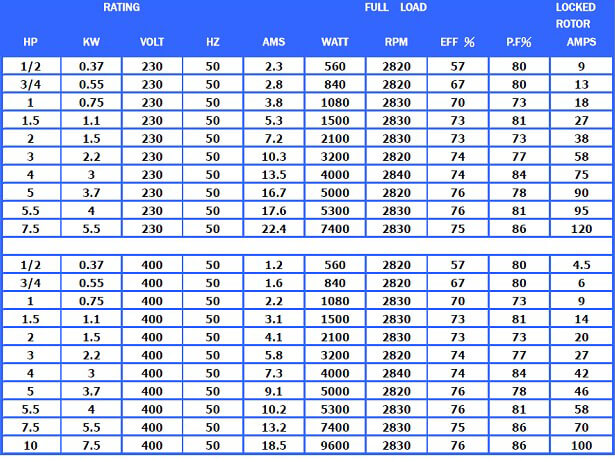

Three Phase Motor Specification

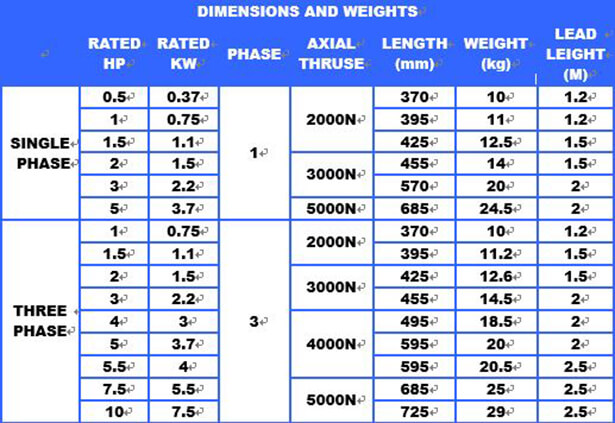

Single & Three Phase Submersible Motors Dimenions and Weights

Single & Three Phase Submersible Motors Dimenions and Weights

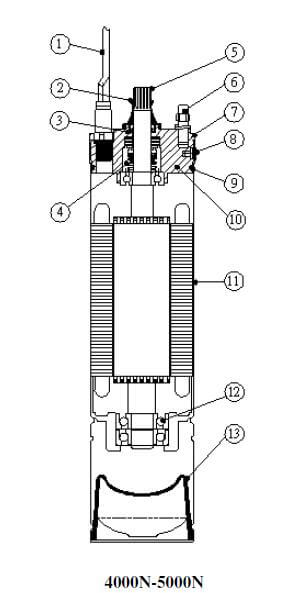

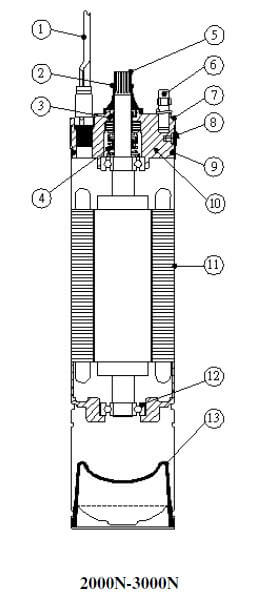

Drawing for Submersible Pump Motors Parts List

Submersible Pumps Motors Parts
