Submersible Pumps

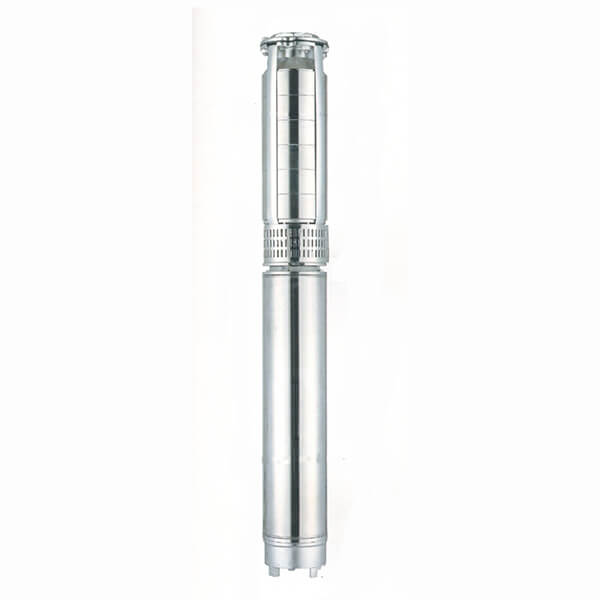

8, 10, 12 Inch Stainless Steel Submersible Pumps BC 20 Series 25 HP -75HP

Product Serial: BC 20 Series

The motor horsepower of BC20 series stainless steel submersible deep well water pumps offer an optimum quality range including 8"(25 HP, 30 HP, 35 HP), 10"(40 HP, 50 HP) and 12"(60 HP, 75 HP). 249 meters max head. The stainless steel submersible deep well water pumps BC20 series provide multistage to meet customer's needs and are ideal for using deeper well and provide full-flow performance.

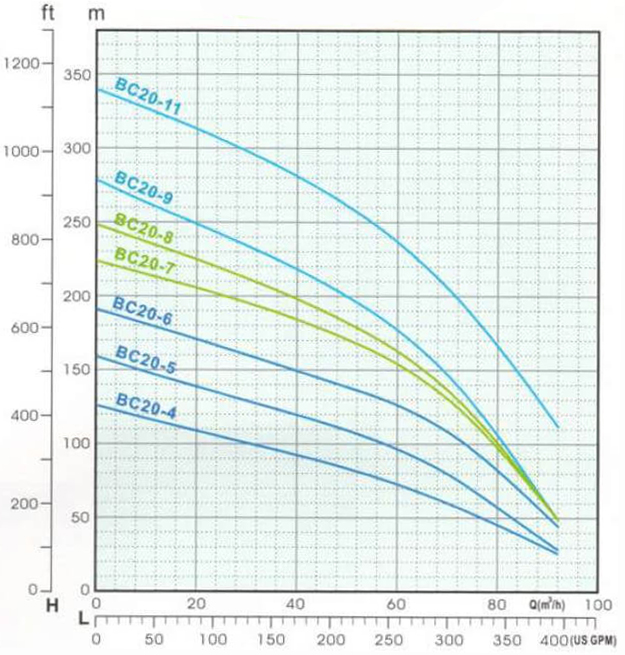

Performance Curves

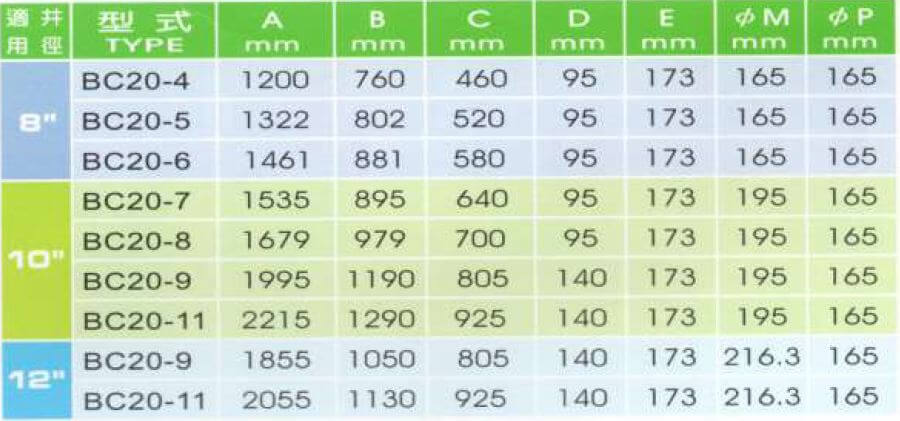

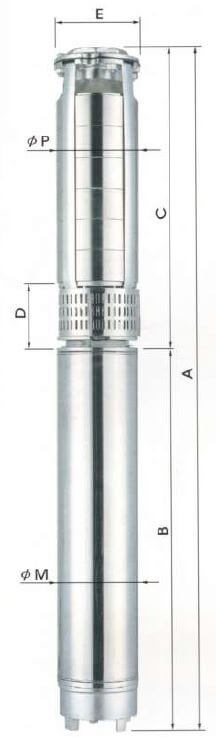

Specification

8, 10, 12 Inch Stainless Steel Submersible Pumps BC 20 Series 25 HP -75HP

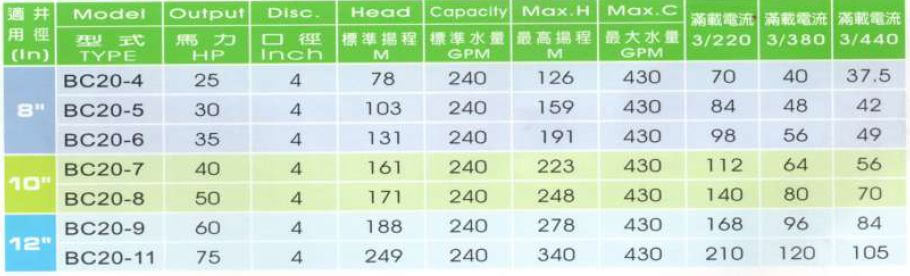

Performance Specification

8, 10, 12 Inch Stainless Steel Submersible Pumps BC 20 Series 25 HP -75HP

Please click here to download Stainless Steel Submersible Pumps BC 20 Series DM
